Design for the Real World: Interstate Signs
Friday, January 21, 2011
-
(Credit: Don Meeker)
-
Design for the Real World
More
Road signs on interstate highways have been standardized since the Eisenhower era. But the typeface is badly out of date, and it looks fuzzy in all sorts of road conditions. Graphic designer Don Meeker explains how he helped bring highway signage back into focus with a typeface called Clearview. Produced by Studio 360’s Derek John.

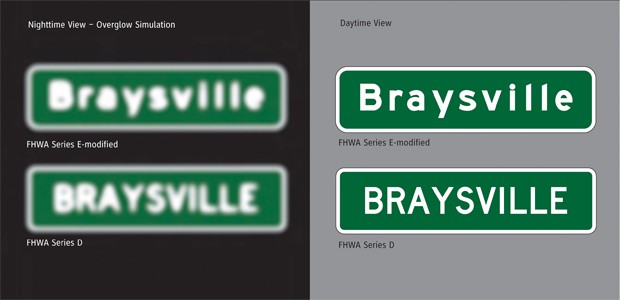

These images illustrate the difference between a daylight view of the two standard typefaces used on highway signs and the nighttime view with halation, as seen by an older driver, when high brightness sign materials are used.

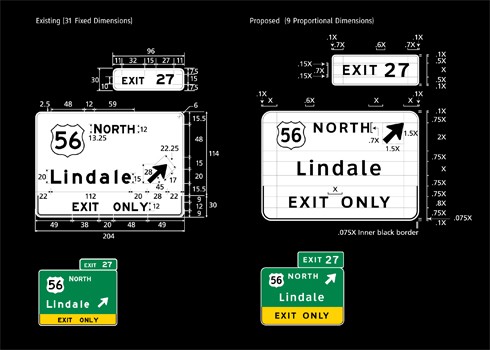

Current freeway guide signs are based on a fixed measurement system adopted in 1958 (left). The example shown has over 31 measurements with great variation from sign to sign based on content. The new Proportion Based Grid System with Clearview Type System (right) optimizes the readability of the panel. Layout is based on only nine dimensions that are all a proportion of the primary legend. As size of the primary legend changes based on road speed and motorists viewing requirements, the panel can be adapted accordingly.

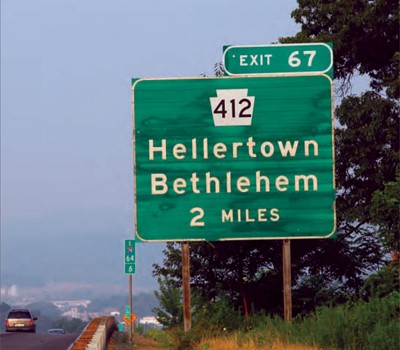

BEFORE: an old road sign.

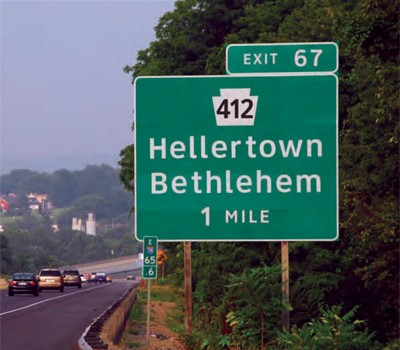

AFTER: a new road sign with Proportion Based Grid System and the Clearview Type System.
Guests:
Don MeekerProduced by:
Derek John- design
